线粒体相关凋亡因子2在肝细胞癌中的表达及其基因调控网络
作者:
通讯作者:
作者单位:

广东省梅州市人民医院 肝病科,广东 梅州 514031

作者简介:

罗可,广东省梅州市人民医院主治医师,主要从事肝癌临床与基础方面的研究。

基金项目:

广东省梅州市医药卫生科研基金资助项目(2020-B-59)。


Expression and gene regulatory network of apoptosis inducing factor, mitochondrion-associated 2 in hepatocellular carcinoma
Author:
Affiliation:

Department of Hepatology, Meizhou People's Hospital, Meizhou, Guangdong 514031, China

Fund Project:

  • 摘要
  • |
  • 图/表
  • |
  • 访问统计
  • |
  • 参考文献
  • |
  • 相似文献
  • |
  • 引证文献
  • |
  • 资源附件
  • |
  • 音频文件
  • |
  • 视频文件
    摘要:

    背景与目的 铁死亡可作为抗肿瘤作用的新靶点,线粒体相关凋亡因子2(AIFM2)是铁死亡的一个关键调控因子。本研究分析AIFM2在肝细胞癌(HCC)中的表达水平及其与患者临床病理因素、预后的关系,并探讨AIFM2在HCC中的调控网络。方法 利用Oncomine数据库分析AIFM2在HCC和正常肝组织中的表达差异,利用UALCAN数据库分析AIFM2表达与患者临床病理特征的相关性;用LinkedOmics数据平台的LinkFinder模块进行GO分析和KEGG分析;用LinkedOmics数据库分析与AIFM2表达相关的蛋白激酶、miRNA和转录因子;用GeneMANIA数据库分析与AIFM2相关的蛋白质相互作用网络;用cBioPortal分析HCC中AIFM2突变的频率和类型。结果 HCC组织中AIFM2 mRNA表达和DNA拷贝数均高于正常组织(均P?0.05)。AIMF2与晚期肿瘤、淋巴结转移、较高的病理分级和TP53突变明显有关(均P<0.05)。高表达AIFM2的患者明显比低表达AIFM2患者的预后差(P=0.034)。GO和KEGG分析显示,AIFM2相关基因主要富集与线粒体和核糖体功能有关的途径,与细胞氧化磷酸化和转录后翻译密切相关。GSEA分析表明,多种蛋白激酶(MAPK1/3/7)、miRNA(miR-30家族)和转录因子(NFAT)与AIFM2的表达密切相关。cBioPortal分析显示,AIFM2在HCC中的主要变异形式是高mRNA表达,但突变频率低。结论 AIFM2在HCC中高表达,与患者不良预后相关,是HCC诊断和预后的潜在标志物。所揭示的AIFM2在HCC中的调控网络为AIFM2在HCC中的后续研究奠定基础。

    Abstract:

    Background and Aims Ferroptosis may serve as a new target for antitumor therapy, and apoptosis inducing factor, mitochondrion-associated 2 (AIFM2) is a key regulator of ferroptosis. This study was conducted to analyze the expression level of AIFM2 in hepatocellular carcinoma (HCC), and its relationship with clinicopathologic factors and prognosis of patients, and to investigate the regulatory network of AIFM2 in HCC.Methods The differential expression of AIFM2 in HCC and normal liver tissue was analyzed using Oncomine database and the correlation between the expression of AIFM2 and the clinicopathologic characteristics of patients was determined using UALCAN database. The LinkFinder module of the LinkedOmics data platform was used for GO analysis and KEGG analysis, and the LinkedOmics database was used to analyze the protein kinases, miRNAs, and transcription factors associated with AIFM2 expression. Analysis of the protein interaction networks associated with AIFM2 was performed by the GeneMANIA database, and the frequency and type of AIFM2 mutations in HCC was defined by cBioPortal.Results The AIFM2 mRNA expression and DNA copy number in HCC tissues were higher than that in normal tissues (both P?0.05). AIMF2 was significantly associated with advanced tumors, lymph node metastasis, higher pathological grades, and TP53 mutations (all P<0.05). Patients with high expression of AIFM2 had significantly worse prognosis than those with low expression of AIFM2 (P=0.034). GO and KEGG analysis showed that AIFM2-related genes were mainly enriched in pathways related to mitochondrial and ribosomal functions, and were closely related to cellular oxidative phosphorylation and post-transcriptional translation. GSEA analysis showed that various protein kinases (MAPK1/3/7), miRNAs (miR-30 family) and transcription factors (NFAT) were significantly associated with the expression of AIFM2. C-bioportal analysis showed that the main variant form of AIFM2 in HCC was high mRNA expression but low mutation frequency.Conclusions AIFM2 is highly expressed in HCC and is associated with poor prognosis of patients. AIFM2 is a potential marker for diagnosis and prognosis of HCC. The revealed regulatory network of AIFM2 in HCC lays a foundation for the follow-up study of AIFM2 in HCC.

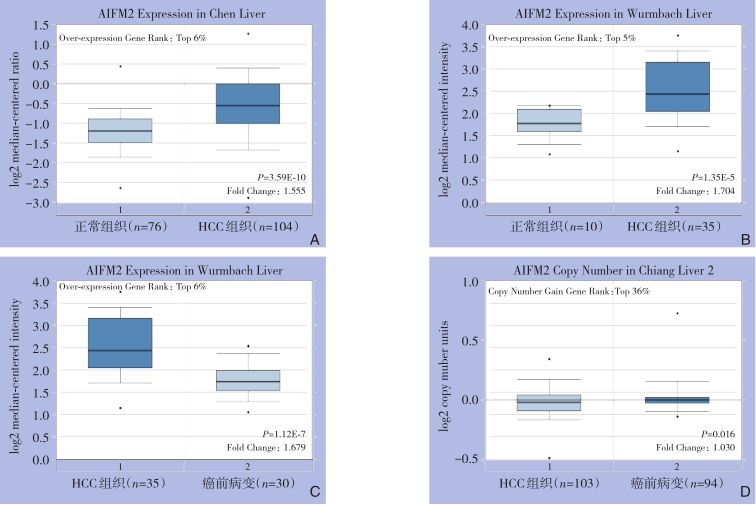

    图1 HCC中的AIFM2转录表达情况 A-B:Oncomine 4.5分析HCC组织与正常组织AIFM2的mRNA和DNA拷贝数;C:Wurmbach liver数据队列中,HCC组织与正常组织中AIFM2的mRNA水平比较;D:Chiang liver 2数据队列中HCC组织与癌前病变组织中AIFM2的 mRNA水平比较Fig.1 Transcriptional expression of AIFM2 in HCC A-B: Oncomine 4.5 analysis of the mRNA and DNA copy numbers of AIFM2 in HCC and normal tissues; C: Comparison of the mRNA levels of AIFM2 between HCC and normal tissues in Wurmbach liver data cohorts; D: Comparison of the mRNA levels of AIFM2 between HCC and precancerous tissues in Chiang liver 2 data cohorts

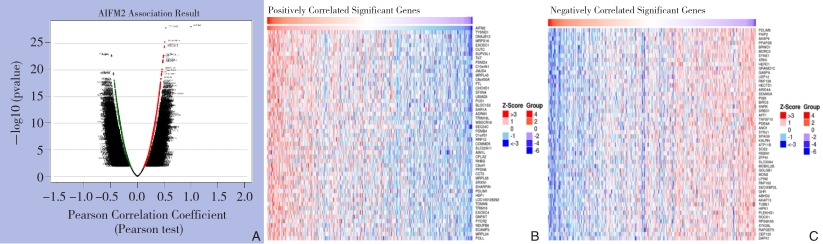

    图3 在HCC中与AIFM2相关的差异表达基因(LinkedOmics) A:使用Pearson检验分析在HCC中AIFM2表达相关的基因(红色表示正相关的基因,绿色表示负相关的基因); B-C:热图显示HCC中与AIFM2正相关和负相关的基因(前50名)Fig.3 Differentially expressed genes associated with AIFM2 in HCC (Linkedomics) A: Pearson test analysis of the genes related to AIFM2 expression in HCC (red color standing for the positively correlated genes, and the green color standing for the negatively correlated genes); B-C: Heat maps showing positive and negative genes associated with AIFM2 in HCC (top 50)

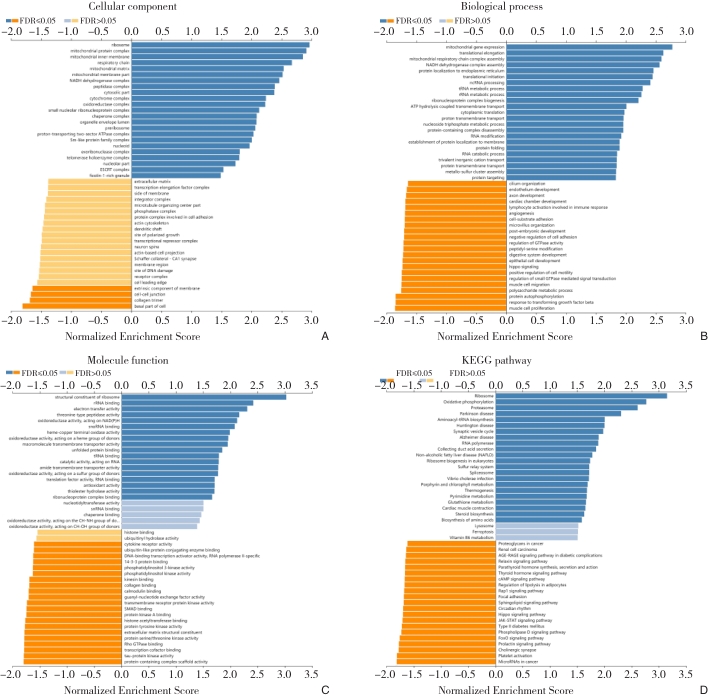

    图4 AIFM2在HCC中表达相关基因的GO功能注释和KEGG信号通路分析 A-C:AIFM2在HCC中表达相关基因GO功能注释;D:AIFM2在HCC中表达相关基因KEGG信号通路分析Fig.4 GO functional annotation and KEGG signaling pathway analysis of AIFM2-related genes expressed in HCC A-C: GO function annotation of AIFM2 expression in HCC; D: KEGG signaling pathway analysis of AIFM2 expression in HCC

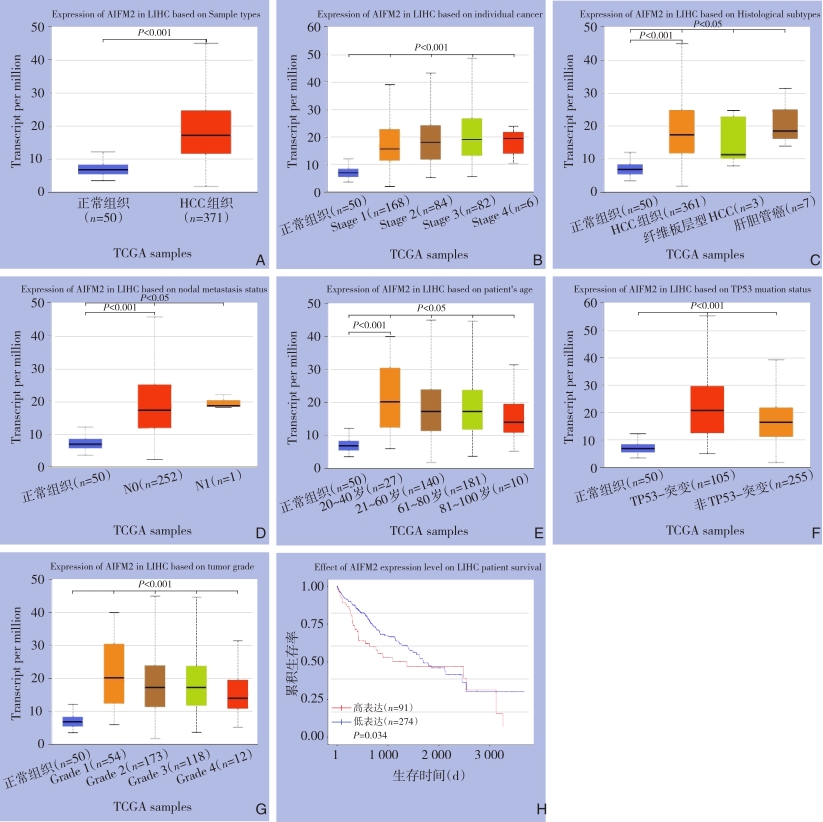

    图2 不同临床病理特征的HCC中AIFM2表达情况及其对预后的影响 A-G:UALCAN数据库分析AIFM2表达水平与肿瘤临床分期、病理亚型、淋巴结转移状态、年龄、TP53突变状态、肿瘤分级等之间的关系;H:HCC患者的生存曲线Fig.2 Expression of AIFM2 in hepatocellular carcinoma patients with different clinicopathologic features and its effect on prognosis A-G: The relationship between AIFM2 expression level and tumor clinical stage, pathological subtypes, lymph node metastatic status, age, TP53 mutation status, tumor grade analyzed in UALCAN database; H: Survival curve of HCC patients

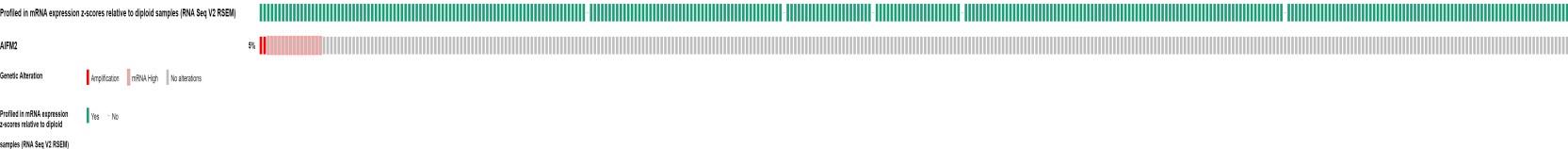

    图5 AIFM2在HCC中的基因变异类型和频率Fig.5 Types and frequency of AIFM2 gene variants in HCC

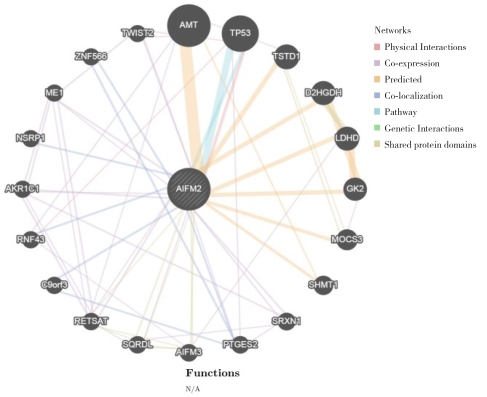

    图6 AIFM2的PPI网络和功能分析(网络边缘的不同颜色表示所应用的生物信息学方法:共表达、网站预测、途径、物理相互作用和共定位)Fig.6 The PPI network and functional analysis of AIFM2 (the different colors at the edges of the network representing the bioinformatics used: co-expression, site prediction, pathways, physical interactions, and co-localization)
    表 1 HCC中的激酶、miRNA和转录因子靶向网络(LinkedOmics)Table 1 Targeting networks of kinases, miRNAs, and transcription factors in HCC (Linkedomics)
    参考文献
    相似文献
    引证文献
引用本文

罗可,刘添皇.线粒体相关凋亡因子2在肝细胞癌中的表达及其基因调控网络[J].中国普通外科杂志,2022,31(1):97-106.
DOI:10.7659/j. issn.1005-6947.2022.01.011
