Ankura主动脉覆膜支架行原位开窗重建弓上分支的应用
作者:
通讯作者:
作者单位:

中国科学院大学宁波华美医院 血管外科/中国科学院大学宁波生命与健康产业研究院,浙江 宁波 315000

作者简介:

余钻标,中国科学院大学宁波华美医院主治医师,主要从事外周血管介入方面的研究。

基金项目:

浙江省卫健委基金资助项目(2021KY299);浙江省宁波市医学重点扶植学科基金资助项目(2022-F21)。


Application of in-situ needle fenestration of Ankura aortic stent graft for revascularization of the supra-aortic branches
Author:
Affiliation:

Department of Vascular Surgery, Hwa Mei Hospital of University of Chinese Academy of Sciences/Ningbo Institute of Life and Health Industry of University of Chinese Academy of Sciences, Ningbo, Zhejiang 315000, China

Fund Project:

  • 摘要
  • |
  • 图/表
  • |
  • 访问统计
  • |
  • 参考文献
  • |
  • 相似文献
  • |
  • 引证文献
  • |
  • 资源附件
  • |
  • 音频文件
  • |
  • 视频文件
    摘要:

    背景与目的 胸主动脉腔内修复术(TEVAR)已经成为治疗主动脉弓部病变的首选术式。然而,此术式要求支架近端安全锚定区至少为15 mm,对于锚定区不足者,则通常需重建弓部分支血管以确保手术安全。在目前各种重建技术中,原位开窗技术因其较大程度的保留分支血管以及较低的内漏风险而应用最多。因此,本研究探讨Ankura主动脉覆膜支架进行原位开窗重建弓上分支的可行性及效果。方法 回顾性分析2017年3月—2020年12月中国科学院大学宁波华美医院收治的47例近端锚定区不足的主动脉病变患者的临床资料。其中胸主动脉夹层38例,胸主动脉瘤6例,胸主动脉溃疡3例。根据术前CTA影像资料决定患者的开窗数目、开窗支架规格,术中利用穿刺针对Ankura主动脉覆膜支架进行原位开窗重建弓部分支,术后定期行主动脉CTA复查随访。结果 所有患者均获手术成功,共植入Ankura胸主动脉覆膜支架47枚,Gore Viabahn覆膜支架51枚,Cordis Smart裸支架20枚。4例术中转烟囱支架植入,原位开窗成功率91.5%(43/47),包括左锁骨下动脉(LSA)开窗29例,左颈总动脉(LCCA)开窗+LSA栓塞1例,LSA开窗+左椎动脉烟囱1例,LSA开窗+左LCCA烟囱9例,LCCA+LSA开窗+无名动脉(IA)烟囱1例,LCCA开窗+IA烟囱+LSA栓塞2例。全组患者手术时间160~300 min,平均(200±20)min,术中开窗时间18~45 min,平均(30±8)min;术后内漏(1型)3例,逆撕2例(1例行升主动脉置换后好转,1例死亡),脑梗死2例,截瘫0例。平均随访时间(28.4±14.7)个月,期间2例内漏在随访中消失,1例内漏未进一步增大予以观察随访中,未见开窗分支血管闭塞。结论 利用穿刺破膜技术对Ankura主动脉覆膜支架进行原位开窗重建分支血管是一种切实可行且有效的治疗方式,近期效果良好。

    Abstract:

    Background and Aims Thoracic endovascular repair (TEVAR) has become the first choice for the treatment of aortic arch lesions. However, this procedure requires a proximal landing zone of at least 15 mm in length, so reconstruction of the major branches of the aortic arch is usually necessary to ensure the safety of the operation in those with insufficient landing zone. Among the current reconstruction techniques, in-situ fenestration technique is most frequently used, because of its greater level of the supra-aortic branch preservation and relatively low risk of endoleak. Therefore, this study was to investigate the feasibility and effect of application of in-situ needle fenestration of Ankura aortic stent graft for revascularization of the supra-aortic branches.Methods The clinical data of 47 patients with aortic disease and short proximal landing zone treated in Ningbo Hwa Mei Hospital of University of Chinese Academy of Sciences from March 2017 to December 2020 were retrospectively analyzed. Among them, there were 38 cases of thoracic aortic dissection, 6 cases of thoracic aortic aneurysm, and 3 cases of thoracic aortic ulcer. According to the preoperative CTA image data, the number of fenestrations and the size of the fenestration stent were determined; during the operation, the Ankura aorta stent graft was used to perform in-situ fenestration and reconstruction of the supra-aortic branches. Aortic CTA regularly performed after surgery.Results All patients were successfully operated. A total of 47 Ankura thoracic aorta stent grafts, 51 Gore Viabahn stent grafts, and 20 Cordis Smart bare stents were implanted. Four cases were converted to chimney stent implantation during the operation. The success rate of in-situ fenestration was 91.5% (43/47), which included left subclavian artery (LSA) fenestration, left common carotid artery (LCCA) fenestration+LSA embolization in 1 case, LSA fenestration+ in 29 cases left vertebral artery chimney in 1 case, LSA fenestration+LCCA chimney in 9 cases, LCCA and LSA fenestration+innominate artery (IA) chimney in 1 case, and LCCA fenestration+IA chimney+LSA embolization in 2 cases. The operative time for the whole group of patients was 160-300 min, with an average of (200±20) min, and the operative time for fenestration was 18-45 min, with an average of (30±8) min. Postoperative endoleak (type 1) occurred in 3 cases, retrograde tear occurred in 2 cases (1 case improved after ascending aorta replacement, and 1 case died), cerebral infarction occurred in 2 cases, and no paraplegia occurred. The average follow-up time was (28.4±14.7) months. During the follow-up period, the endoleak disappeared in 2 cases and did not further increase in 1 case, which was treated by observation, and there was no occlusion in the fenestrated branch vessels.Conclusion Using in-situ needle fenestration of Ankura aortic stent graft for revascularization of the supra-aortic branches is a feasible and effective treatment method, with favorable short-term results.

    表 1 本组患者开窗结果[n(%)]Table 1 The results of fenestration in this group of patients [n (%)]

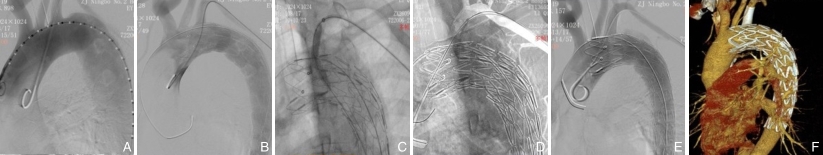

    图1 术中与术后影像学资料1 A:第一次术中造影;B:植入Ankura支架后造影;C:LSA原位穿刺破膜成功后小球囊扩展破膜处;D:LSA置入开窗支架;E:最后造影见LSA开窗重建良好;F:术后1年复查主动脉CTA见支架形态良好,血管通畅Fig.1 The pre- and postoperative imaging data 1 A: The first intraoperative angiography; B: Angiography after implantation of Ankura stent; C: The small balloon expansion of the opening after successful fenestration in the LSA; D: Placement of fenestration stent in the LSA; E: The well fenestrated and reconstructed LSA showed by final angiography; F: Aortic CTA at 1 year after operation showing the stent in good shape and the patent vessels

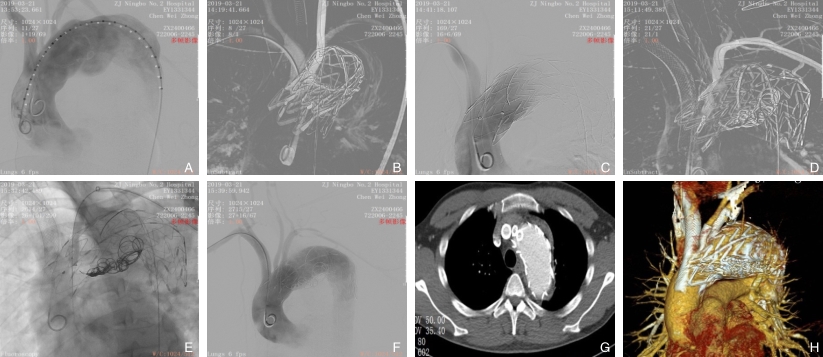

    图2 术中与术后影像学资料2 A:术中造影见主动脉瘤累及弓部且锚定区短;B:Ankura支架植入后行LCCA穿刺开窗;C:LCCA完成开窗后造影;D:烟囱技术重建无名动脉(innominate artery,IA)后同期行LSA开窗操作;E:LSA穿刺成功予以小球囊进一步扩张破膜;F:最后造影,弓部三分支显影良好,未见明显内漏,其中LCCA及LSA原位开窗重建,IA烟囱重建,瘤腔部分弹簧圈栓塞;G-H:术后半年复查CTA的横断面及血管重建显示开窗分支支架通畅,瘤腔已隔绝满意Fig.2 The pre- and postoperative imaging data 2 A: The intraoperative angiography showing the aortic aneurysm involving the arch and short landing zone; B: Fenestration of the LCCA after Ankura stent implantation; C: Intraoperative angiography after the LCCA fenestration; D: Simultaneous LSA fenestration after the reconstruction of the innominate artery (IA) by chimney technique; E: Using a small balloon to further dilate the opening after successful puncture of the LSA; F: Final angiography showing clear display of the three branches of the aortic arch with no evident endoleak after reconstruction of the LCCA and LSA by in situ fenestration, reconstruction of the IA by chimney, and partial embolization of the aneurysmal lumen by coil; G-H: The CTA cross section and reconstruction images showing patent branch grafts and satisfactory occlusion of the aneurysmal lumen
    参考文献
    相似文献
    引证文献
引用本文

余钻标,尹孝亮,林作栋,郎德海. Ankura主动脉覆膜支架行原位开窗重建弓上分支的应用[J].中国普通外科杂志,2021,30(12):1411-1417.
DOI:10.7659/j. issn.1005-6947.2021.12.004
