能谱CT及其联合甲状腺球蛋白检测对良恶性甲状腺结节的诊断价值
作者:
通讯作者:
作者单位:

中南大学湘雅三医院 放射科,湖南 长沙 410013

作者简介:

石灿,中南大学湘雅三医院主管技师,主要从事CT的临床应用方面的研究。

基金项目:


Diagnostic values of spectral CT and its combination with thyroglobulin detection for benign or malignant thyroid nodules
Author:
Affiliation:

Department of Radiology, the Third Xiangya Hospital of Central South University, Changsha 410013, China

Fund Project:

  • 摘要
  • |
  • 图/表
  • |
  • 访问统计
  • |
  • 参考文献
  • |
  • 相似文献
  • |
  • 引证文献
  • |
  • 资源附件
  • |
  • 音频文件
  • |
  • 视频文件
    摘要:

    背景与目的 甲状腺结节是一临床常见病。其中恶性结节具有较高转移风险,正确判断甲状腺结节性质对于制定治疗方案和改善预后具有重要意义。目前检查方法均存在局限性,本研究通过探讨能谱CT及其联合多种因素对甲状腺结节性质的诊断效能。方法 回顾性分析2018年8月—2021年3月间收治的甲状腺结节患者资料,按纳入与排除标准选择合适的病例,分析良恶性结节患者的人口学因素、影像资料、能谱数据以及甲状腺功能检验结果,筛选其中有差异的指标,并绘制受试者工作特征曲线(ROC),以曲线下面积(AUC)评价诊断效能。结果 最终纳入151例患者,男46例,女105例,共计224枚结节,其中良性组结节61枚,恶性组结节163枚。良恶性甲状腺结节患者间具有明显差异的指标包括年龄(P<0.001)、甲状腺球蛋白(Tg)(P<0.001)、甲状腺过氧化物酶抗体(P=0.003)和降钙素(P=0.017);良恶性结节形态学与能谱参数中方面有明显差异的指标包括边界(P<0.001)、钙化(P=0.03)、囊变(P<0.001)、水含量变化率(RCWC)(P=0.002)。多项因素回归分析结果性显示,无囊变、RCWC、Tg、年龄均为恶性结节的危险因素(均P<0.05)。能谱CT单独诊断(能谱参数和影像学特征)的灵敏度为55.7%,特异度为94.4%,准确度为91.0%,AUC为0.783;能谱CT联合Tg诊断甲状腺癌的灵敏度为81.0%,特异度为80.9%,准确度为80.9%,AUC为0.850;能谱CT联合Tg与年龄诊断甲状腺癌的灵敏度为85.7%,特异度为84.6%,准确度为84.7%,AUC为0.905。结论 能谱CT对诊断甲状腺结节的良恶性具有一定的价值,通过能谱CT所获得的RCWC与影像学特征联合Tg检测并结合患者年龄考虑,对诊断甲状腺结节性质有较高的准确度。

    Abstract:

    Background and Aims Thyroid nodules are common clinical entities. Among them, malignant nodules have a higher risk of metastasis. Correct definition of the nature of thyroid nodules is of great significance for developing treatment plans and improving prognosis. However, all currently available inspection methods have their limitations. Therefore, this study was performed to investigate the efficiency of spectral CT and its combination with multiple other factors in differential diagnosis of thyroid nodules.Methods The data of patients with thyroid nodules admitted from August 2018 to March 2021 were reviewed, and the eligible cases were selected according to the inclusion and exclusion criteria. The demography factors, imaging findings, spectral data and thyroid function test results of between patients with benign or malignant thyroid nodules were analyzed, and the variables with significant difference were screened out. The receiver operating characteristic (ROC) curve was draw, and the diagnostic efficiency was evaluated by the value of the area under curve (AUC).Results A total of 151 patients were enrolled, of whom 46 were males and 105 were females with a total of 224 nodules that included 61 benign nodules and 163 malignant nodules. The variables showing significant difference between patients with benign or malignant thyroid nodules were age (P<0.001), thyroglobulin (Tg) (P<0.001), thyroid peroxidase antibody (P=0.003) and calcitonin (P=0.017); the variables with significant difference in terms of morphological features and spectral parameters between benign and malignant thyroid nodules included the boundary (P<0.001), calcification (P=0.03), cystic degeneration (P<0.001), and rate of change of water concentration (RCWC) (P=0.002). The results of multivariate analysis revealed that absent of cystic degeneration, RCWC, Tg and age were risk factors for malignant nodules (all P<0.05). The sensitivity, specificity, accuracy and AUC for spectral CT alone (spectral parameters plus imaging characteristics) were 55.7%, 94.4%, 91.0% and 0.783, for spectral CT combined with Tg detection were 81.0%, 80.9%, 80.9% and 0.850, and for spectral CT combined with Tg and age were 85.7%, 84.6%, 84.7% and 0.905, respectively.Conclusion Spectral CT has certain value in differential diagnosis of benign and malignant thyroid nodules. The RCWC and imaging characteristics obtained from spectral CT combined with Tg detection, with consideration of age of the patients, may offers a higher accuracy for definition of the nature of thyroid nodules.

    表 2 形态学特征统计结果[n(%)]Table 2 Statistical results of morphological characteristics [n (%)]
    表 5 各参数对诊断甲状腺癌的二元Logistic回归分析Table 5 Binary Logistic regression analysis of each variables in the diagnosis of thyroid cancer

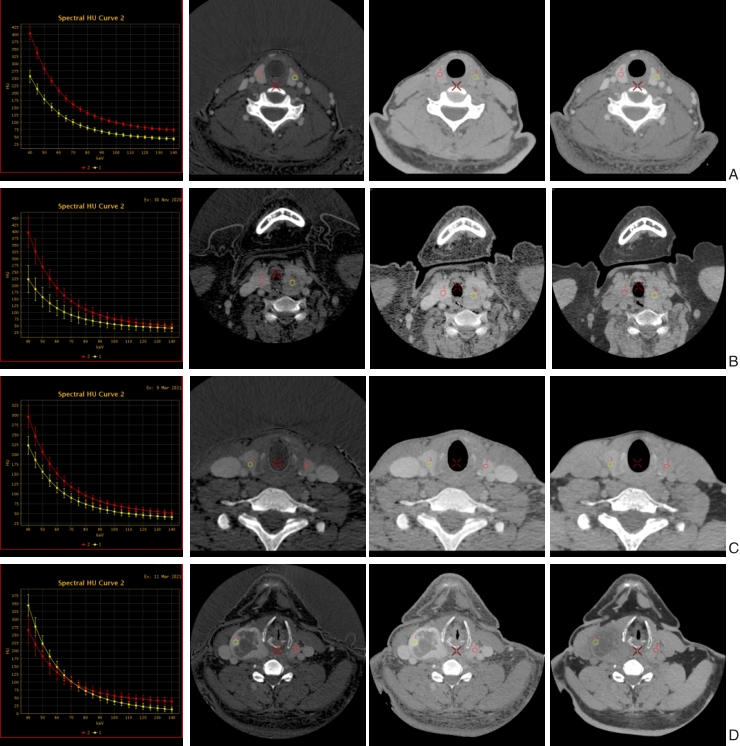

    图1 良恶性病灶能谱CT图 A:PTC患者(女,35岁)甲状腺能谱CT图;B:结节性甲状腺肿患者(女,69岁)甲状腺能谱CT图,黄色ROI为病灶,红色为正常甲状腺组织;C:PTC患者(男,28岁)甲状腺能谱CT图;D:结节性甲状腺肿患者(男,44岁)甲状腺能谱CT图,黄色ROI为病灶,红色为正常甲状腺组织Fig.1 Spectral CT images of benign and malignant lesions A: Spectral CT image of the thyroid of a PTC patient (female, 35 years old); B: Spectral CT image of the thyroid of a patient with nodular goiter (female, 69 years old), yellow ROI showing the lesions, and red showing the normal thyroid tissue; C: Spectral CT image of PTC patient (male, 28 years old); D: Spectral CT image of patient with nodular goiter (male, 44 years old), yellow ROI showing the lesions, and red showing the normal thyroid tissue

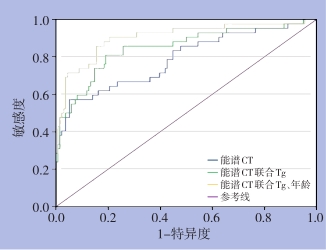

    图2 不同方法诊断甲状腺癌的ROC曲线图Fig.2 ROC curves of the different methods for the diagnosis of thyroid cancer
    表 6 能谱CT单用及其联合诊断甲状腺结节良恶性的效能比较(%)Table 6 Comparison of the diagnostic efficacy of spectral CT alone and its combination for benign and malignant thyroid nodules (%)
    参考文献
    相似文献
    引证文献
引用本文

石灿,彭松,梁琪.能谱CT及其联合甲状腺球蛋白检测对良恶性甲状腺结节的诊断价值[J].中国普通外科杂志,2021,30(11):1359-1366.
DOI:10.7659/j. issn.1005-6947.2021.11.012

复制
分享
文章指标
  • 点击次数:
  • 下载次数:
历史
  • 收稿日期:2021-08-24
  • 最后修改日期:2021-10-13
  • 录用日期:
  • 在线发布日期: 2021-12-24
