主动脉脱套与TEVAR术中支架源性主动脉脱套
作者:
通讯作者:
作者单位:

复旦大学附属中山医院 血管外科/复旦大学血管外科研究所/国家放射与治疗临床医学研究中心,上海200032

作者简介:

马韬,复旦大学附属中山医院主治医师,主要从事主动脉夹层生物力学方面的研究。

基金项目:

国家自然科学基金资助项目(82170493);上海市卫生健康委员会科研基金资助项目(202240289)。


Aortic intimal intussusception and intraoperative stent-graft-induced aortic intimal intussusception during TEVAR
Author:
Affiliation:

Department of Vascular Surgery, Zhongshan Hospital Fudan University/Institute of Vascular Surgery, Fudan University/National Clinical Research Center for Interventional Medicine, Shanghai 200032, China

Fund Project:

  • 摘要
  • |
  • 图/表
  • |
  • 访问统计
  • |
  • 参考文献
  • |
  • 相似文献
  • |
  • 引证文献
  • |
  • 资源附件
  • |
  • 音频文件
  • |
  • 视频文件
    摘要:

    急性主动脉夹层发生时内膜撕裂,如果撕裂形态呈现为周径上的环形破口,破口远端的内膜会脱离主动脉管壁并形成独立的内膜管腔,这个管腔顺着血流方向塌陷之后就会形成顺行脱套病变,即主动脉脱套。主动脉脱套发病率低,其总数的90%发生在主动脉夹层自然病程中,也可以是胸主动脉腔内修复术(TEVAR)的并发症。随着近年TEVAR技术的普及和手术数量的增加,手术相关并发症的数量也逐渐增加,但是TEVAR术中支架源性主动脉脱套(ISAII)的报道极为有限。该病作为一种罕见的夹层或并发症,并不被大多数医生所熟知,因此本文旨在介绍主动脉脱套和ISAII的概念、特点、诊断、分型以及处理原则与方法、注意事项,为临床工作提供理论支持,让更多患者受益。出现在自然病程中的主动脉脱套,有时需要心电门控计算机体层成像血管造影或心脏超声结合使用才能明确诊断,这种病变大部分情况下可以在开放手术中直视下修补;但是在TEVAR手术中,脱套病变往往只能通过数字减影血管造影发现,而且大部分情况下优先推荐血管腔内技术修复。如果没有及时发现脱套病变,将会出现灾难性后果。在TEVAR术中,如果在常规造影后发现ISAII,首先需要保留手术器械和通路。其次需要造影明确脱套分型,根据不同的分型,分清主动脉结构的改变,选择不同的处理方案。ISAII分三型,Ⅰ型ISAII病变局限于胸主动脉支架覆盖部位,无需额外支架植入;Ⅱ型ISAII病变位于支架覆盖远端,但局限于胸主动脉段,治疗上需要在胸主动脉段植入覆膜支架,固定内膜团块,开通真腔;Ⅲ型ISAII病变位于腹主动脉段,最危险,对术者的手术决策和技术要求也最高。除了胸主动脉覆膜支架植入,还需要在腹主动脉段使用裸支架固定内膜团块,开通真腔血供。

    Abstract:

    When an acute aortic dissection occurs, the intima tears. If the tear forms a circumferential rupture, the intima distal to the tear detaches from the aortic wall and forms an independent intimal lumen. As this lumen collapses along the direction of blood flow, it creates an antegrade intimal detachment, known as aortic intimal intussusception. Aortic intimal intussusception is rare, with 90% of cases occurring during the natural progression of an aortic dissection, but it can also be a complication of thoracic endovascular aortic repair (TEVAR). With the increasing prevalence and number of TEVAR procedures in recent years, the incidence of surgery-related complications has also risen. However, reports on intraoperative stent graft-induced aortic intimal intussusception (ISAII) during TEVAR are extremely limited. This condition, being a rare type of dissection or complication, is not well-known to most physicians. Therefore, this article aims to introduce the concept, characteristics, diagnosis, classification, treatment principles and methods, and precautions of aortic intimal intussusception and ISAII, providing theoretical support for clinical practice and benefiting more patients. Aortic intimal intussusception occurring during the natural progression of the disease sometimes requires a combination of electrocardiogram-gated computed tomography angiography or cardiac ultrasound for a definitive diagnosis. In most cases, such lesions can be repaired under direct vision during open surgery. However, during TEVAR procedures, intussusception lesions are often only detectable by digital subtraction angiography, and in most cases, endovascular techniques are recommended for repair. If the intussusception lesions are not promptly identified, catastrophic consequences can occur. During TEVAR, if ISAII is detected after routine angiography, it is crucial to first preserve the surgical instruments and access routes. Next, angiography is required to clarify the type of intussusception and to distinguish the structural changes in the aorta, selecting the appropriate treatment strategy based on the classification. ISAII is classified into three types. Type I ISAII lesion is confined to the stent-covered area of the thoracic aorta and do not require additional stent implantation. Type Ⅱ ISAII lesion is located distal to the stent-covered area but are confined to the thoracic aorta. Treatment involves implanting a covered stent in the thoracic aorta to fix the intimal flap and restore true lumen patency. Type Ⅲ ISAII lesion is located in the abdominal aorta, which is the most dangerous and requires the highest level of surgical decision-making and technical skill. In addition to implanting a covered stent in the thoracic aorta, a bare stent is needed in the abdominal aorta to fix the intimal flap and restore true lumen blood supply.

    图1 主动脉脱套示意图 A:主动脉夹层顺行脱套,内膜脱离至主动脉弓部;B-C:主动脉夹层逆行脱套,主动脉脱套分别在心脏收缩期和舒张期两个时刻,脱套病变呈现出不同位置和形态Fig.1 Schematic diagram of aortic intimal intussusception A: Antegrade intimal intussusception in aortic dissection, with the intima detaching to the aortic arch; B-C: Retrograde intimal intussusception in aortic dissection, with the aortic intimal intussusception appearing at different positions and in different forms during cardiac systolic and diastolic phases

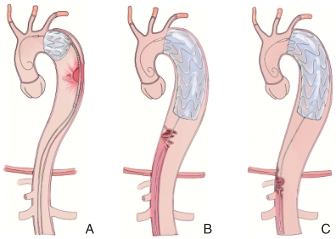

    图2 三种类型的ISAII示意图 A:Ⅰ型ISAII,支架导入时或释放时,支架和输送系统导致脱套,但支架释放完成后将脱套病变完整覆盖;B:Ⅱ型ISAII,真腔结构消失,主动脉增粗,假腔扩张,内膜团块位于膈肌上方水平;C:Ⅲ型ISAII,真腔结构消失,主动脉增粗,假腔扩张,内膜团块位于膈肌下方水平Fig.2 Schematic diagram of the three types of ISAII A: Type I ISAII - The stent or delivery system causes intimal intussusception during stent introduction or release, but the detachment lesion is completely covered after stent deployment; B: Type Ⅱ ISAII - The true lumen structure disappears, the aorta enlarges, and the false lumen expands, with the intimal flap located above the diaphragm; C: Type Ⅲ ISAII - The true lumen structure disappears, the aorta enlarges, and the false lumen expands, with the intimal flap located below the diaphragm
    图3 ISAII 处理示意图 A:Ⅰ型ISAII 发生后,近远端锚定区均充分,支架在位,无需再次植入支架;B:Ⅱ型ISAII,胸主动脉覆膜支架植入开通真腔,覆盖内膜团块;C:Ⅲ型ISAII,胸主动脉覆膜支架植入开通真腔,重建真腔血流,腹主动脉段裸支架植入,开通真腔并固定内膜团块Fig.3 Schematic diagram of ISAII management A: Type I ISAII - After occurrence, both proximal and distal landing zones are adequate, and the stent is in place without the need for additional stent implantation; B: Type Ⅱ ISAII - A covered stent is implanted in the thoracic aorta to open the true lumen and cover the intimal flap; C: Type Ⅲ ISAII - A covered stent is implanted in the thoracic aorta to open the true lumen and restore true lumen blood flow, and a bare stent is implanted in the abdominal aorta to open the true lumen and fix the intimal flap
    图4 Ⅰ型ISAII病例 A:支架植入前造影图像,可见原发破裂口,真假腔形态和内膜片位置;B:支架输送系统导入后,造影见内膜片结构消失,输送系统突出到假腔内部,Ⅰ型ISAII发生;C:支架释放之后,造影见ISAII被支架覆盖,近远端锚定区充足,真腔血流通畅,ISAII无进展Fig.4 Type I ISAII case A: Angiographic image before stent implantation showing the primary tear, the morphology of the true and false lumens, and the position of the intimal flap; B: After the stent delivery system is introduced, angiography shows the disappearance of the intimal flap structure, with the delivery system protruding into the false lumen, indicating the occurrence of type I ISAII; C: After stent deployment, angiography shows the ISAII covered by the stent, with sufficient proximal and distal landing zones, unobstructed true lumen blood flow, and no progression of ISAII
    图5 Ⅱ型ISAII病例 A:支架植入前造影图像,可见破口,真假腔形态和内膜片位置;B:支架释放后造影,支架远端可见内膜团块,真腔结构消失,Ⅱ型ISAII发生;C:支架远端胸腹主动脉造影见Ⅱ型ISAII发生,真腔供血脏器均缺血,仅有假腔通畅,且主动脉增粗;D:第2枚胸主动脉支架植入后造影,内膜团块被覆盖,真腔血流恢复,内脏动脉血流恢复,ISAII无进展Fig.5 Type Ⅱ ISAII case A: Angiographic image before stent implantation showing the tear, the morphology of the true and false lumens, and the position of the intimal flap; B: Angiography after stent deployment shows an intimal flap at the distal end of the stent, disappearance of the true lumen structure, indicating the occurrence of type Ⅱ ISAII; C: Angiography of the thoracoabdominal aorta at the distal end of the stent shows the occurrence of type Ⅱ ISAII, with ischemia of organs supplied by the true lumen, only the false lumen remaining patent, and an enlarged aorta; D: Angiography after implantation of a second thoracic aortic stent shows the intimal flap covered, restoration of true lumen blood flow, resumption of blood flow to visceral arteries, and no progression of ISAII
    图6 Ⅲ型ISAII病例 A-C:支架植入前造影图像,可见破口,真假腔形态和内膜片位置;D:支架释放后造影,支架远端可见内膜团块,真腔结构消失,Ⅱ型ISAII发生;E:第2枚覆膜支架植入后见脱套病变继续向远端移动,并且降至膈肌以下水平;F-G:多枚裸支架跨膈肌水平释放至肾下主动脉,固定内膜团块,开通真腔血流;同期肠系膜上动脉支架植入解决肠缺血Fig.6 Type Ⅲ ISAII case A-C: Angiographic images before stent implantation showing the tear, the morphology of the true and false lumens, and the position of the intimal flap; D: Angiography after stent deployment shows an intimal flap at the distal end of the stent, disappearance of the true lumen structure, indicating the occurrence of type Ⅱ ISAII; E: After implantation of a second covered stent, the intussusception lesion continues to move distally, reaching below the diaphragm level; F-G: Multiple bare stents are deployed across the diaphragm level to the infrarenal aorta, fixing the intimal flap and restoring true lumen blood flow; simultaneously, a superior mesenteric artery stent is implanted to solve the mesenteric ischemia
    参考文献
    相似文献
    引证文献
引用本文

马韬,符伟国.主动脉脱套与TEVAR术中支架源性主动脉脱套[J].中国普通外科杂志,2024,33(6):876-884.
DOI:10.7659/j. issn.1005-6947.2024.06.002
