主动脉根部-升主动脉段病变腔内修复的研究进展
作者:
通讯作者:
作者单位:

云南省阜外心血管病医院/昆明医科大学附属心血管病医院 血管外科,云南 昆明 650102

作者简介:

毛逸伦,云南省阜外心血管病医院/昆明医科大学附属心血管病医院硕士研究生,主要从事血管外科方面的研究。

基金项目:

云南省科技厅科技计划基金资助项目(202101AT070149)。


Progress of endovascular repair of lesions involving aortic root/ascending segment
Author:
Affiliation:

Department of Vascular Surgery, Fuwai Yunnan Cardiovascular Hospital/Affiliated Cardiovascular Hospital of Kunming Medical University, Kunming 650102, China

Fund Project:

  • 摘要
  • |
  • 图/表
  • |
  • 访问统计
  • |
  • 参考文献
  • |
  • 相似文献
  • |
  • 引证文献
  • |
  • 资源附件
  • |
  • 音频文件
  • |
  • 视频文件
    摘要:

    主动脉根部-升主动脉段,由于其复杂的解剖结构及血流动力学湍流特点,使得在设计腔内移植物时,需考虑“主动脉瓣膜、双侧冠脉开口、主动脉窦部膨大、头臂干开口”等几个因素。因而被视为腔内修复最后的“禁区”,至今仍然无理想的腔内移植物能够用于此段病变的治疗,成为全球各大血管外科中心聚焦的前沿问题。现有研究方案包括Endo-Bentall法、Endo-Wheat法以及“景氏瓣窗型”移植物腔内修复动物实验等,但是主要存在个体化局限性、冠脉支架的远期通畅率不明确和移植物感染等悬而未解问题。目前尚无完善的腔内移植物或腔内手术方案可解决主动脉根部-升主动脉段病变。鉴于目前此技术的局限性和有限的临床经验,这项技术应保留给高危患者,特别是那些拒绝开放干预的患者。笔者对目前现有的腔内修复累及主动脉根部及升主动脉病变方案做一综述。

    Abstract:

    Aortic root/ascending segment, due to its complex anatomical structure and hemodynamic turbulence characteristics, requires consideration of several factors such as "aortic valve, bilateral coronary artery openings, aortic sinus dilation, and innominate artery opening" when designing endovascular grafts. Therefore, it is regarded as the final "forbidden zone" for endovascular repair, and to this day, there is still no ideal intraluminal graft available for treating lesions in this segment, becoming a forefront issue focused on by major vascular surgery centers worldwide. Current research strategies include the Endo-Bentall procedure, Endo-Wheat procedure, and "Jing's valved-fenestrated endografting" animal experiments, but significant challenges remain unresolved, such as individualization limitations, unclear long-term patency of coronary stents, and graft infections. Currently, there are no perfect endografts or endovascular surgical approaches to address lesions in the aortic root-ascending aorta segment. Given the limitations of the current technology and limited clinical experience, this technique should be reserved for high-risk patients, especially those who refuse open interventions. Here, the authors provide an overview of the currently available endovascular repair options involving the aortic root and ascending aorta lesions.

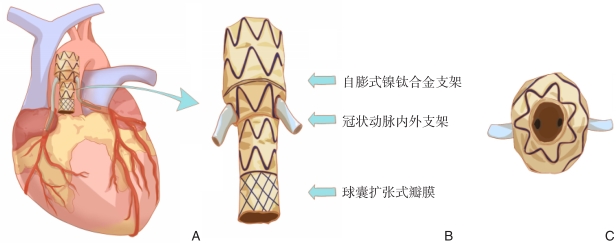

    图1 Endo-Bentall解决方案示意图 A:Endo-Bentall方案概念图解;B:Endo-Bentall方案关键部位设计示意图;C:Endo-Bentall方案俯视图Fig.1 Endo-Bentall solution schematic diagram A: Conceptual diagram of the Endo-Bentall solution; B: Schematic diagram illustrating the key component design of the Endo-Bentall solution; C: Top view diagram of the Endo-Bentall solution

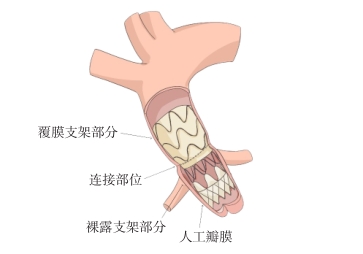

    图2 Endo-Wheat解决方案示意图(根据术中造影分别选择合适的介入瓣和覆膜支架,在手术台上将二者缝合连接;双侧冠状动脉开口处为裸支架,保证冠脉血流灌注;设置3个锚定区;可经心尖入路一期修复)Fig.2 Endo-Wheat solution schematic diagram (Based on intraoperative angiography, suitable intervention valves and covered stents are selected, and they are sutured and connected on the operating table. The openings of the bilateral coronary arteries are left uncovered to ensure coronary blood flow perfusion. Three landing zones are established. The repair can be performed through a transapical approach in a one-stage procedure)

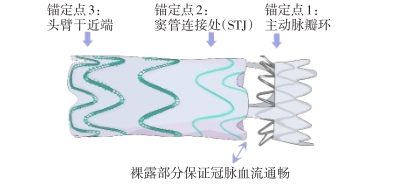

    图3 主动脉瓣组件与半覆膜支架移植物拼接示意图(锚定点1:主动脉瓣环,通过瓣膜装置稳定支架移植物;锚定点2:窦管连接处,形成近端密封区;锚定点3:头臂干近端,形成远端密封区)Fig.3 Schematic diagram of aortic valve component and semi-covered stent graft integration (Landing zone 1: Aortic valve annulus, stabilizing the stent graft through valve device; Landing zone 2: Sinotubular junction, forming a proximal sealing zone; Landing zone 3: Proximal end of the brachiocephalic trunk, forming a distal sealing area)
    图4 一体化带瓣开窗分支型腔内移植物示意图Fig.4 Schematic diagram of integrated valved-fenestrated-bifurcated endograft
    参考文献
    相似文献
    引证文献
引用本文

毛逸伦,邬光敏,单智远,张子正,郭媛媛.主动脉根部-升主动脉段病变腔内修复的研究进展[J].中国普通外科杂志,2023,32(6):923-928.
DOI:10.7659/j. issn.1005-6947.2023.06.014
